AWS Cloud Security Config Review using Nuclei Templates

AWS Cloud Security Config Review using Nuclei Templates

We're excited to tell you about Nuclei Templates release v9.8.5! This new version includes newly added AWS cloud review templates. In this blog post, we'll discuss automating cloud misconfiguration review, creating custom AWS checks, and sharing results on the PDCP Cloud for review.

The AWS Cloud Security Configuration Review, also referred to as AWS Cloud Config Review or AWS Cloud Audit in pentesting circles, is a vital procedure for assessing the security posture of Amazon Web Services (AWS). It involves a meticulous examination of AWS configurations to verify that they are optimally configured to safeguard data and services. This comprehensive analysis encompasses various facets of AWS infrastructure, including storage, databases, and applications, to ensure compliance with established security protocols. By identifying potential vulnerabilities and areas for enhancement, this review aids in fortifying defenses, thereby mitigating the risk of unauthorized access and data breaches.

If you're only interested in using the AWS cloud review templates, skip to the end of the blog

AWS Cloud Security Configuration Review

Some common key activities involved in an AWS Cloud Security Configuration Review:

  1. Identity and Access Management Review: This means checking who has access to what resources in AWS. It ensures that only the right people can access sensitive information or critical systems.
  2. Service Configuration Checks: This involves looking at how AWS services are set up. For example, making sure that storage services like S3 buckets are private and databases are not open to the internet unless necessary.
  3. Monitoring and Logging: This is about making sure that there are systems in place to keep an eye on what’s happening in the AWS environment. It checks that activities are logged so you can go back and see what occurred if there's a security issue.
  4. Network Configuration Review: This involves examining how networks within AWS are set up, including security groups and access control lists, to ensure they are secure from unauthorized access.
  5. Compliance Checks: This checks whether the AWS setup meets the specific rules and regulations important for your business. This could be about data protection laws or industry-specific guidelines.
  6. Vulnerability Assessments: This means scanning the AWS environment to find weaknesses or potential points where a hacker could get in. This helps in fixing those spots before they can be exploited.
  7. Best Practices Evaluation: The review also assesses the configurations against recommended security best practices to ensure that the AWS resources are optimized for security resilience.
  8. Remediation & Report generation: The review provides actionable insights and remediation strategies for any identified security weaknesses or compliance failures. Detailed reports are generated that highlight security gaps, non-compliance issues, and recommendations for mitigation. This facilitates informed decision-making for enhancing security postures.

We believe that the AWS cloud configuration review is unnecessarily complex, often presenting more challenges than it should in practice. Hence, we've opted to simplify the process by crafting security checks for AWS cloud using the straightforward YAML format employed by Nuclei. These templates are designed to execute all essential checks, encompassing configurations, logging, compliance, and best practices. By leveraging these templates, we can effortlessly generate a comprehensive report on our cloud platform, complete with remediation measures. This streamlined approach facilitates smoother reviews for companies and penetration testers alike.

Before we get started with the scanning, let's talk a little bit about the AWS code review nuclei-templates. We have used code protocols to write AWS cloud configuration review templates.

What are Code Protocol Templates?

Nuclei empowers users to execute external code on the host operating system, granting security researchers, pentesters, and developers the flexibility to expand its capabilities beyond standard protocol-based testing. This functionality enables interaction with the underlying OS, facilitating the execution of custom scripts or commands for a diverse array of tasks including system configurations, file operations, and network interactions. Such control and adaptability empower users to customize their security testing workflows to meet precise needs. Explore the Code protocol templates in our documentation for more details.

Because code templates can execute commands on hosts, users must first sign the template using their keys, and these are not included in default scans. To use these templates, you need to sign them using the -sign flag. After signing, you can run the templates by providing the -code flag.

In the example below, you'll notice that we can easily run an aws-cli command directly into the template. However, unlike other templates that execute on target hosts, this one will run the command on our own host.

yaml

1id: aws-config-review
2info:
3  name: AWS Cloud Config Review Example
4  author: princechaddha
5  severity: info
6  description: |
7    Checks if AWS CLI is set up on the environment.
8  reference:
9    - https://aws.amazon.com/cli/
10  tags: cloud,devops,aws,amazone,aws-cloud-config
11
12self-contained: true
13code:
14  - engine:
15      - sh
16      - bash
17    source: |
18      aws sts get-caller-identity --output json
19
20    matchers:
21      - type: word
22        words:
23          - '"UserId"'
24
25    extractors:
26      - type: json
27        name: account
28        internal: true
29        json:
30          - '.Account'

Example #1:

In this example, we will create a template that detects publicly exposed S3 buckets, a common cause of big data breaches.

  • We've set self-contained: true because, unlike typical Nuclei templates that require a host to target, code templates run independently of any host.
  • The code block starts by specifying the engine we wish to use for executing the command, followed by the command itself in the source section.
  • After the info block, we have added a flow, which is a recently added feature that controls the execution flow of the template. Initially, we added code(1), meaning the first code block will execute. This block includes an extractor that extracts the names of all available S3 buckets and stores them in the buckets array. Following that, a for loop iterates through all the buckets and executes the second code block, replacing the bucket variable in the second command.
  • The second code block executes the AWS CLI command aws s3api get-bucket-acl --bucket $bucket --query 'Grants[?(Grantee.URI==http://acs.amazonaws.com/groups/global/AllUsers)]', replacing the bucket name using $bucket variable extracted using first command.
  • Using the matcher, we check if the bucket has READ permission.
  • Finally, the last extractor outputs the matched buckets, displaying the information.

yaml

1id: s3-public-read
2
3info:
4  name: S3 Bucket with Public READ Access
5  author: princechaddha
6  severity: critical
7  description: |
8    Verifies that Amazon S3 buckets do not permit public 'READ' (LIST) access to anonymous users, protecting against unauthorized data exposure
9  reference:
10    - https://docs.aws.amazon.com/cli/latest/reference/s3api/get-bucket-acl.html
11  tags: cloud,devops,aws,amazon,s3,aws-cloud-config
12
13flow: |
14  code(1)
15  for(let bucketName of iterate(template.buckets)){
16    set("bucket", bucketName)
17    code(2)
18  }
19
20self-contained: true
21code:
22  - engine:
23      - sh
24      - bash
25    source: |
26      aws s3api list-buckets --query 'Buckets[*].Name'
27
28    extractors:
29      - type: json # type of the extractor
30        internal: true
31        name: buckets
32        json:
33          - '.[]'
34
35  - engine:
36      - sh
37      - bash
38    source: |
39        aws s3api get-bucket-acl --bucket $bucket --query 'Grants[?(Grantee.URI==`http://acs.amazonaws.com/groups/global/AllUsers`)]'
40
41    matchers:
42      - type: word
43        words:
44          - '"Permission": "READ"'
45
46    extractors:
47      - type: dsl
48        dsl:
49          - '"The S3 bucket " + bucket +" have public READ access"'

Example #2:

Similarly, in the following template we are checking for public RDS snapshots.

yaml

1id: rds-public-snapshot
2info:
3  name: RDS Public Snapshot Exposure
4  author: princechaddha
5  severity: high
6  description: |
7    Checks if AWS RDS database snapshots are publicly accessible, risking exposure of sensitive data.
8  impact: |
9    Public snapshots can expose sensitive data to unauthorized users, leading to potential data breaches.
10  remediation: |
11    Modify the snapshot's visibility settings to ensure it is not public, only shared with specific AWS accounts.
12  reference:
13    - https://docs.aws.amazon.com/AmazonRDS/latest/UserGuide/USER_ShareSnapshot.html
14  tags: cloud,devops,aws,amazon,rds,aws-cloud-config
15
16variables:
17  region: "ap-northeast-1"
18
19flow: |
20  code(1)
21  for(let RDPsnaps of iterate(template.snapshots)){
22    set("snapshot", RDPsnaps)
23    code(2)
24  }
25
26self-contained: true
27code:
28  - engine:
29      - sh
30      - bash
31    source: |
32      aws rds describe-db-snapshots  --region $region  --snapshot-type manual  --output json  --query 'DBSnapshots[*].DBSnapshotIdentifier'
33
34    extractors:
35      - type: json
36        name: snapshots
37        internal: true
38        json:
39          - '.[]'
40
41  - engine:
42      - sh
43      - bash
44    source: |
45         aws rds describe-db-snapshot-attributes --region $region --db-snapshot-identifier $snapshot  --query 'DBSnapshotAttributesResult.DBSnapshotAttributes'
46
47    matchers:
48      - type: word
49        words:
50          - '"all"'
51
52    extractors:
53      - type: dsl
54        dsl:
55          - '"RDS snapshot " + snapshot + " is public"'

Custom Templates for Specific Use Cases

Similar to the above template, users can create their own custom AWS cloud checks for their environment.

Here are a few more use cases for AWS Nuclei templates:

  1. Cloud Optimization: Nuclei templates can help ensure optimal usage of AWS resources. For instance, a template can check if CloudFront caching is enabled or if Route 53 DNS records are properly configured.
  2. Deployment Verification: Templates can verify if deployments have been completed successfully and if the deployed version matches the expected version. This can be done with CodePipeline pipelines, for example.
  3. Disaster Recovery: Templates can verify if disaster recovery resources are properly configured. For example, a template can check that all RDS instances have a Multi-AZ deployment configured.
  4. Security Compliance: Templates can help ensure compliance with security requirements. For instance, a template can check that all S3 buckets are encrypted.
  5. Cost Optimization: Templates can check for underutilized EC2 instances that can be terminated or migrated to a smaller instance type, thus reducing costs

Running AWS Cloud Configuration Review Templates

To use cloud configuration review templates, first we need to set up the environment. This setup is similar to using the aws-cli, where you either add aws_access_key_id and aws_secret_access_key to the ~/.aws/credentials file or export them as environment variables.

In Nuclei-Templates, we've introduced the concept of profiles, which allow users to run a specific set of templates tailored for a particular use case. For running AWS templates, we have a profile named aws-cloud-config.

Once the environment is properly configured, users can execute the following template to ensure everything is set up correctly before running the profile.

cli

1nuclei -id aws-code-env -code

If the template matches, this indicates that the environment has all the necessary tools installed and the CLI is set up. Users can then run the following command to execute all the AWS cloud config templates.

Currently, the region is hardcoded to us-east-1 in the templates for region-specific services. Users have the option to pass a different region variable via the CLI when running a template or update the region directly in the profile file itself.

Uploading Results to ProjectDiscovery Cloud Platform

Now, we'll run a scan using our AWS config scan profile. Before we start, it's very useful for pentesters or companies to save the scan results for reporting or remediation purposes. To facilitate this, you can use the -cloud-upload flag to upload the results to PDCP.

To upload results to the cloud, you need to obtain an authentication token. Here are the steps to follow:

  • Go to PDCP Cloud and log in to your account.
  • Click on your profile picture in the top-right corner and select API key.
  • Copy your API key, and in your terminal, type nuclei -auth <your-api-key>.

Now you're all set to run the templates!

cli

1nuclei -config ~/nuclei-templates/profiles/aws-cloud-config.yml -cloud-upload

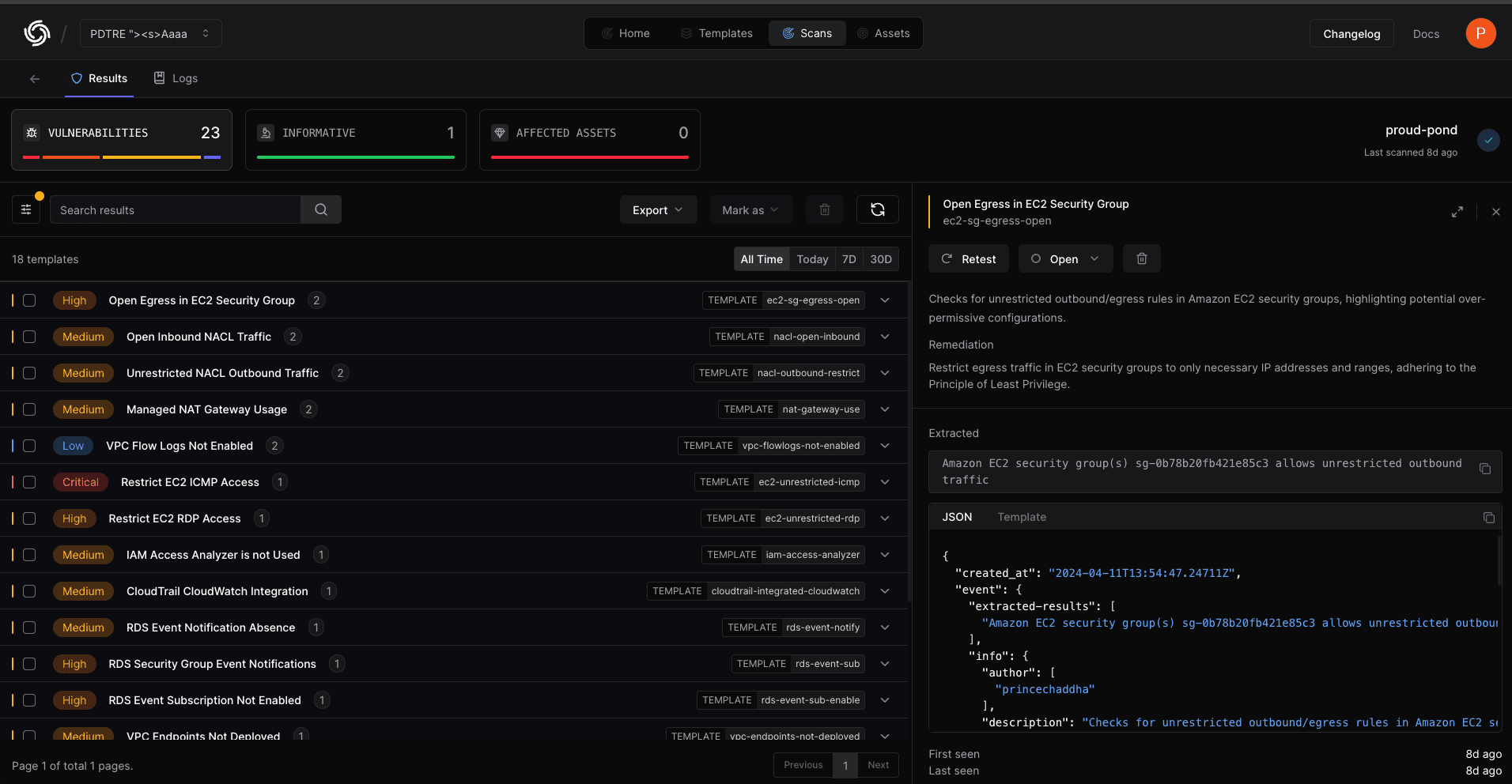

Now that we have numerous results, it would be very convenient to view these on the Cloud. Simply log into PDCP Cloud, and you will find a scan created with the results.

We have added over 95+ templates for services like ACM, CloudTrail, EC2, RDS, VPC, CloudWatch, IAM, and S3, and we invite the community to share their feedback. We expect this number to grow as the security community continues to contribute and collaborate.

Conclusion

The Nuclei templates for AWS provide users with significant creativity and flexibility, enabling them to craft checks that cater to their particular workflow and environment. This approach can not only assist in identifying and resolving security misconfigurations but also facilitate the monitoring of their overall AWS environment, such as optimizing costs, achieving compliance, or enhancing performance.


You can also join our Discord server. It's a great place to connect with fellow contributors and stay updated with the latest developments. Thank you, once again!

By leveraging Nuclei and actively engaging with the open-source community, or by becoming a part of the ProjectDiscovery Cloud Platform, companies can enhance their security measures, proactively address emerging threats, and establish a more secure digital landscape. Security represents a shared endeavor, and by collaborating, we can consistently adapt and confront the ever-evolving challenges posed by cyber threats.
